Description

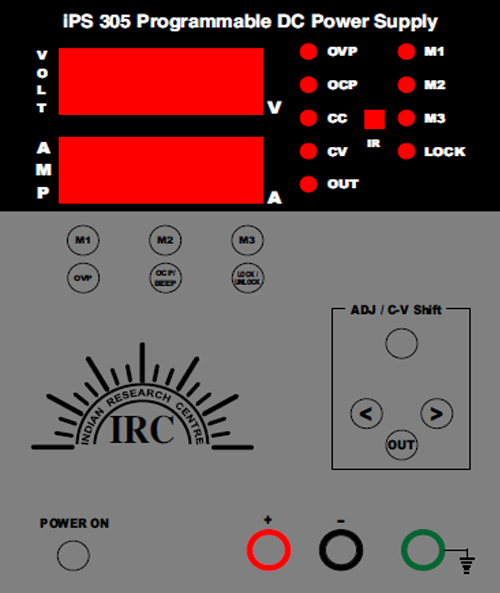

IPS 305A is an adjustabe dc power supply(0-30V & 0-5A)

Features:
  • 30V/5A full digital control
  • 10mV/1mA high accuracy and resolution
  • Low noise and ripple
  • CV/CC given voltage and constant current mode
  • Highly reliable OCP, OVP, arbitrarily set protection
  • Built-in set of parameters stored
  • Keypad lock to prevent misuse
  • 0-30V adjustable DC outpu
  • 10mV and 1mA resolution.

Specification



Operating Conditions :
  • Input voltage : 230V +/-10%
  • Frequency range : 50- 60Hz
  • Operating temperature : 32-104 ℉ (0-40 ºC)
  • Operating humidity : < 80%RH
  • Storage temperature : 32-158 ℉ (0-70 ºC)
  • Storage humidity : < 70%RH


Stable Voltage :
  • Output Voltage Range : 0-30V Continuously adjustable
  • Setup Resolution : 10 mV
  • Ripple : 1mVRMS


Stable Current :

  • Output Current Range : 0-5A
  • Setup Resolution : 1 mA
  • Ripple : < 3mARMS
